Buried for Stability: The Soil Mechanics of Sign Post Foundations

The visible part of a sign post is only part of the structure. Below grade, a length of steel is buried in soil, and getting that hidden portion right is as much a matter of soil mechanics as anything above ground.

A post resists overturning the same way a lever resists rotation around a fulcrum: the deeper it is embedded, the more soil resistance it can mobilize to counteract the bending force from wind or impact acting on the sign above. As a general rule of thumb used across the sign industry, roughly one-third of a post's total length should sit below ground. An eight- to ten-foot post, for example, is typically buried around three and a half feet, while shorter posts require proportionally less depth. For U-channel posts installed without a separate breakaway anchor, guidance commonly calls for an embedment depth between thirty and thirty-six inches, though actual requirements vary with soil type, since loose sand offers far less resistance than compacted clay or gravel.

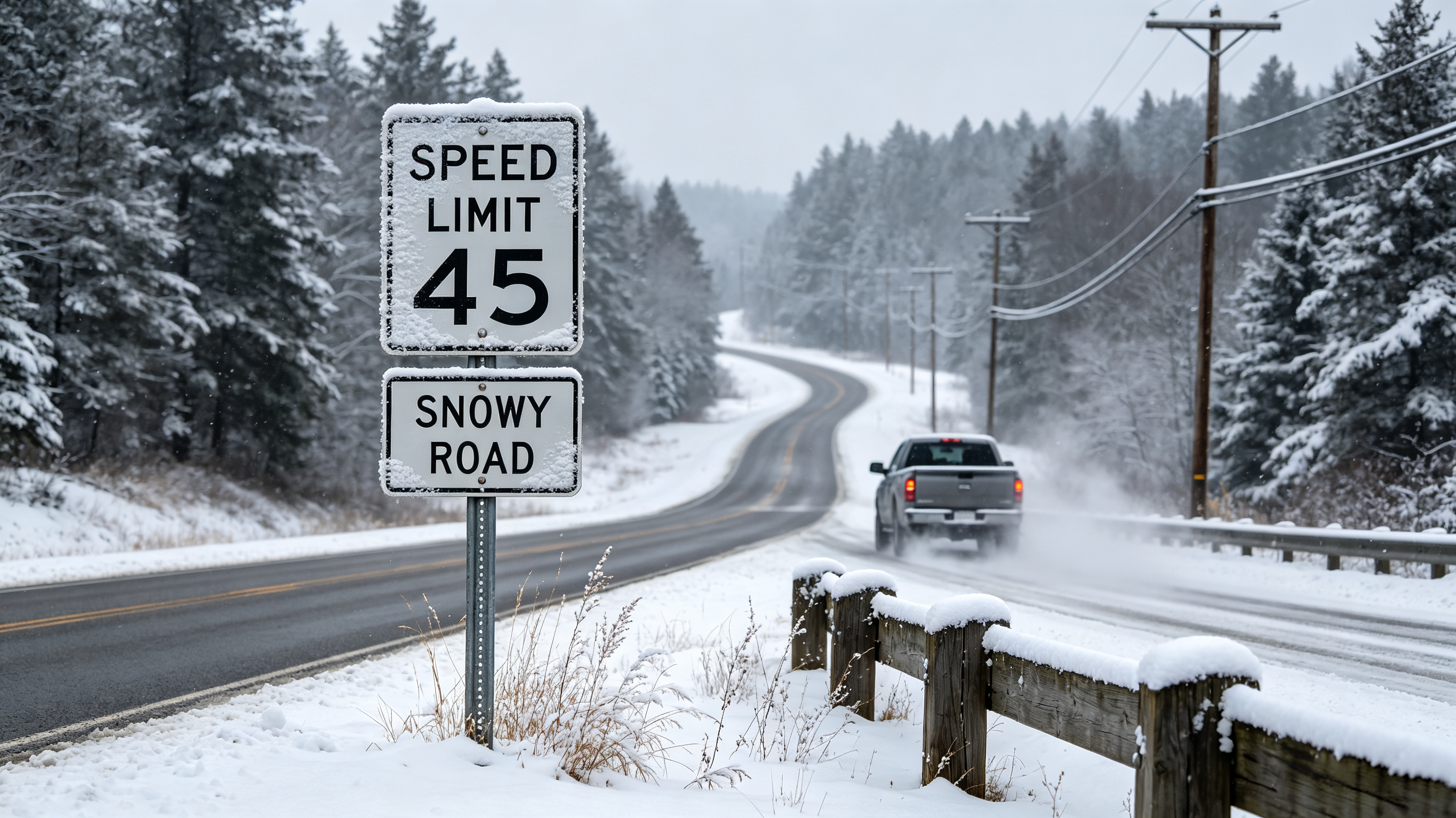

Frost is another hidden variable. In regions with cold winters, water in the soil freezes and expands, a process that can gradually heave posts upward out of the ground over repeated freeze-thaw cycles if they are not set below the local frost line, the maximum depth to which the ground is expected to freeze in a typical winter. Because frost depth varies enormously by climate, from a few inches in mild regions to several feet in the northern United States and Canada, transportation agencies specify embedment depths regionally rather than using a single nationwide figure.

Foundation design also interacts directly with breakaway safety. Federal guidance for small roadside sign supports explicitly recommends that posts be driven directly into soil rather than encased in a concrete footing, because a rigid concrete collar can prevent the post from bending, breaking, or pulling free as intended during a vehicle impact, undermining the very safety feature that made the support acceptable for use near traffic in the first place. Larger, heavier sign structures, which are not expected to yield on impact, instead sit on engineered concrete foundations sized using standard geotechnical calculations for overturning resistance and bearing capacity.

The underground portion of a sign post therefore has to satisfy two goals that can pull in different directions: enough embedment to resist wind and routine impacts, but not so much rigid encasement that the post loses its ability to yield safely if struck by a vehicle. Balancing those two requirements, using nothing more sophisticated than dirt, gravel, and a measuring tape, is a quietly essential piece of roadside engineering.
