From Sketch to Standard – How the MUTCD Shapes Every Sign You See


The uniformity of traffic signs worldwide is not an accident of design but the product of a rigorous standardization process, embodied in the United States by the Manual on Uniform Traffic Control Devices (MUTCD), first published in 1935. Today, the MUTCD is a legal code incorporated by reference into the U.S. Code of Federal Regulations (23 CFR Part 655). Every sign post on a public road must conform to its specifications, which dictate everything from the typeface to the minimum retroreflectivity values.
A new sign standard often begins with a recognized need—perhaps a recent study identifies that drivers misread a merge warning. The National Committee on Uniform Traffic Control Devices (NCUTCD) assembles a technical committee of engineers, human-factors psychologists, and ophthalmologists. They review crash data, reaction-time studies, and photometric measurements before drafting a proposed change. Experimental signs may be installed at test sites and evaluated using instrumented vehicles that record driver eye movements and approach speeds.

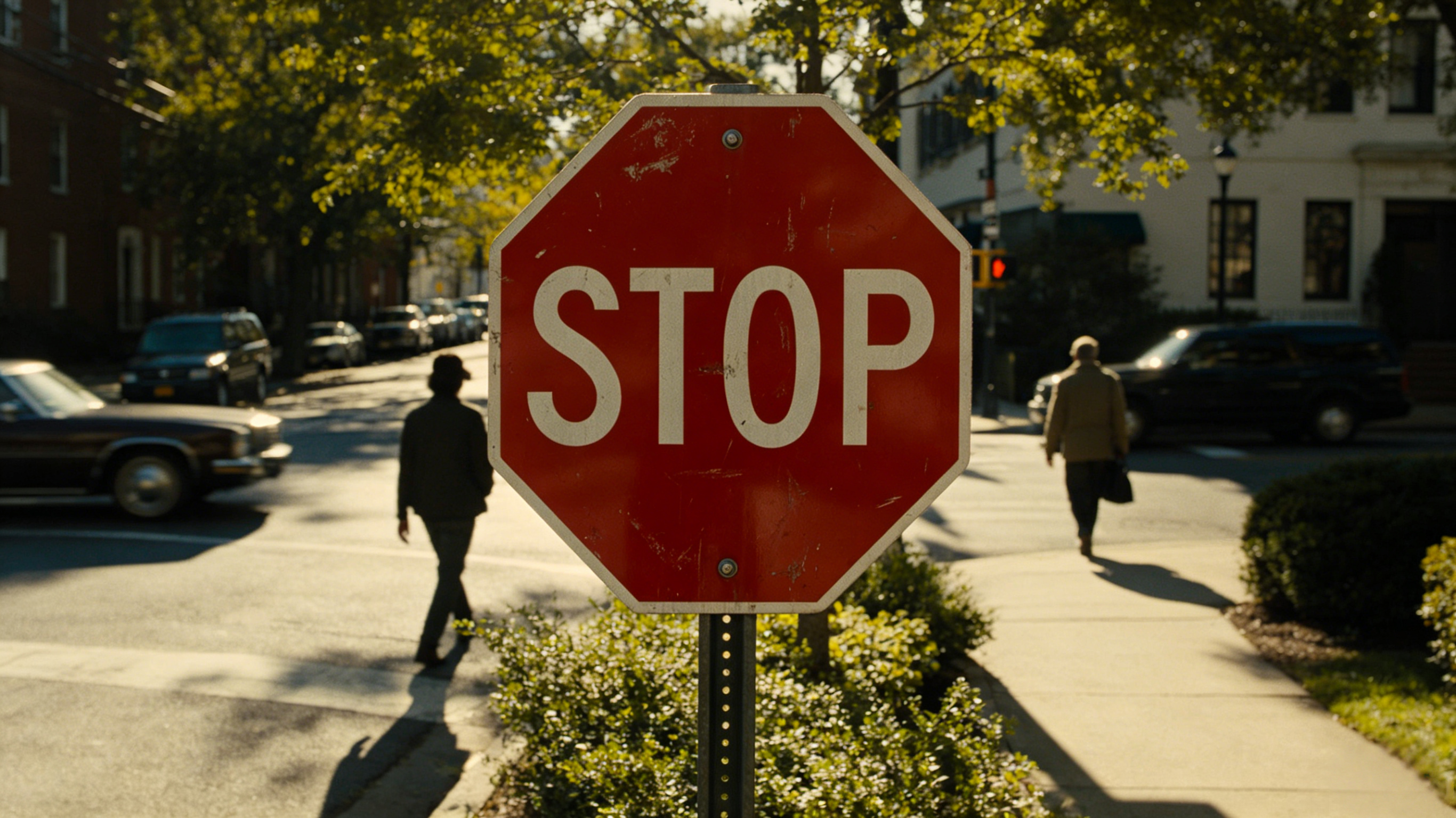

The geometry of a standard sign is defined with precision. For example, the standard STOP sign for most intersections is an octagon measuring approximately 750 mm (30 inches) by 750 mm, with larger sizes required for high-speed roadways, with a white border and legend. The word “STOP” uses the Standard Highway Signs font, derived from the FHWA Series Gothic, with stroke widths and inter-character spacing specified to the millimeter. Red retroreflective sheeting must meet ASTM D4956 Type III or higher specifications, with Type IX or XI required for high-speed freeway applications, depending on the roadway speed. This ensures that every STOP sign post in the country presents an identical visual cue.

The MUTCD also governs placement: longitudinal distance from the decision point, lateral offset from the traveled way, and mounting height. A regulatory sign on a 65–75 mph freeway must provide a minimum legibility distance of approximately 240 meters, which dictates its letter height and sheeting type.

Once a revision passes the notice-and-comment rulemaking process and is adopted, manufacturers update their production templates. The result is a roadside landscape where every sign—from a school zone to a highway exit—speaks a standardized visual language, allowing a driver to travel cross-country and instantly comprehend the message on any sign post.
